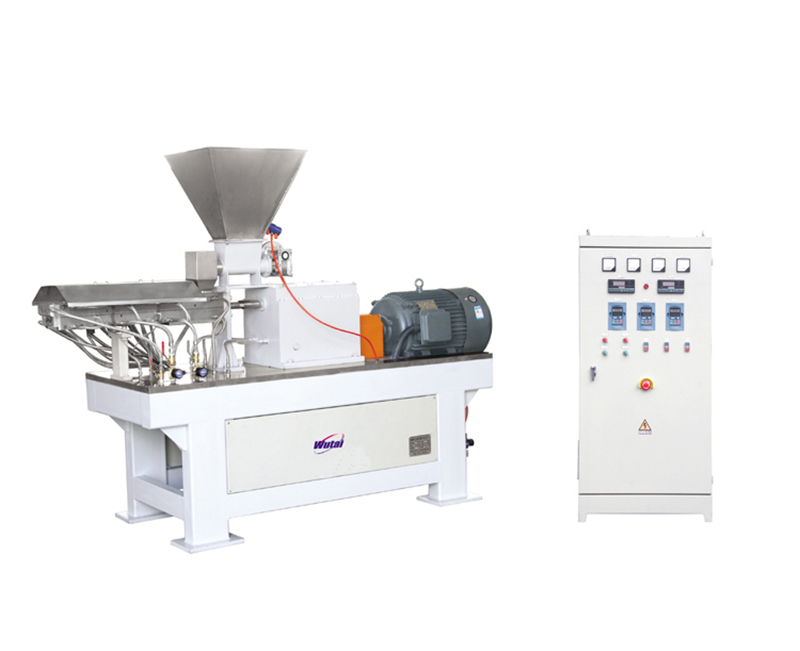

This extruder is co-rotating twin screw extruder ,materials can achieve ideal dispersed and kneaded effect after fully hot-melted under the precise intermeshing action of the conveying elements and kneading elements on the screws.
Main Features
*High output capacity and excellent mixing efficiency, glossiness can increased 3-5 degree than normal extruder.
*Clamshell barrel has high efficient heat-exchange and automatic temperature control system
*The two side open barrel design ,easy to clean
*Hopper with screw shaft ensuring the uniform material feeding
*Automatic alarm control system of lubricating oil (optional equipment)
*Advanced two way PID temperature control system with tolerance ±2 ℃
*The clamshell barrel equipped with automatic recycling filtered water cooling system (optional equipment)
*Screw barrel is segment liner design
*electric control type with three options
(a) Normal control – ZSJ-A
(b) design according to the EU standard – ZSJ-B

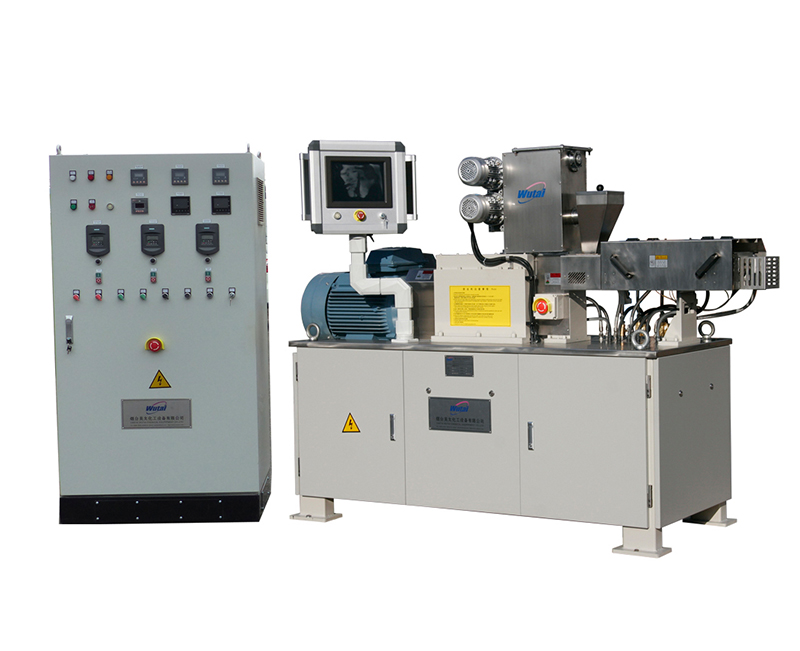

(c) Touch screen computer display and PLC control – ZSJ-C
*Gearbox designed in lower noise and high speed
To void the raw material jam in the hopper , the feeder is with vibrate or swing system(optional equipment)
*There is strong permanent metal magnetic detector system at hopper
Specification
Model |
ZSJ-43 |
ZSJ-53A |
ZSJ-53B |
ZSJ-63 |
ZSJ-73 |
ZSJ-83 |
Output(kg/h) |
100-150 |
200-300 |
300-400 |
500-600 |
600-700 |
800-1000 |
Screw dia(mm) |
43 |
53 |
53 |
63 |
73 |
83 |
Screw speed(rpm) |
0-500 |
0-500 |
0-500 |
0-500 |
0-500 |
0-500 |
Screw Length(L/D) |
15:1 |
15:1 |
15:1 |
15:1 |
16:1 |
15:1 |
Main motor(kw) |
15 |
22 |
30 |
45 |
55 |
75 |
Feeding motor(kw) |
0.37 |
0.55 |
0.75 |
1.5 |
1.5 |
2.2 |
Heating power(kw) |
3 |
6 |
6 |
8 |
8 |
12 |
Temperature control |
Double control by two way PID |
|||||
Speed control |
By frequency inverter |
|||||
Cooling method |
Direct water cooling |
|||||
Dimension(m) |
2.0*0.65*1.7 |
2.3*0.7*1.9 |
2.3*0.7*1.9 |
2.7*0.8*2.0 |
2.9*0.9*2.0 |
3.8*0.8*2.1 |
