  • Product Name: ACM series grinding system
  • Product Classification: ACM series grinding system
  • Telephone: +86 18660512269
  • Company name: Yantai Wutai Chemical Equipment Co.,Ltd
  • Contact Address: 26 Mingda West Road, Laishan District, Yantai, Shandong
Product Details
Product inquiry

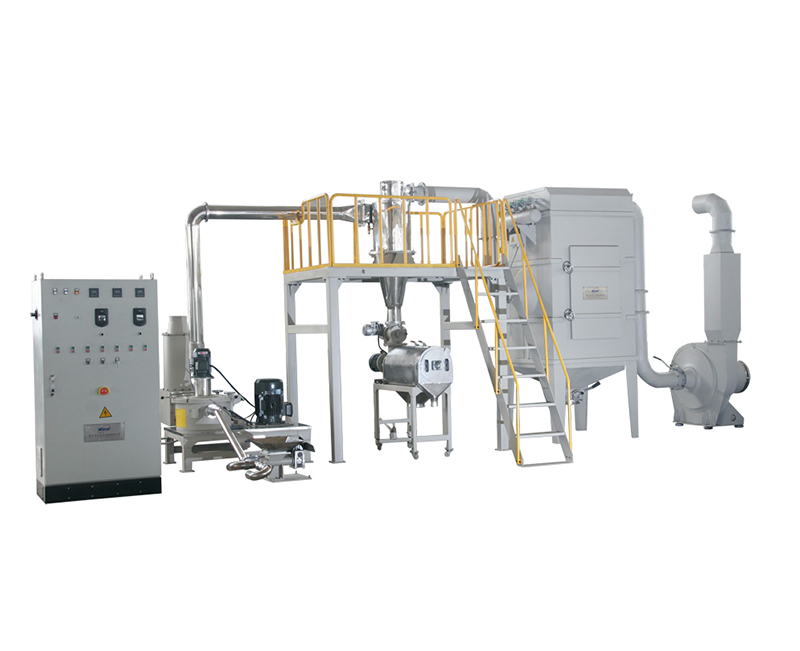

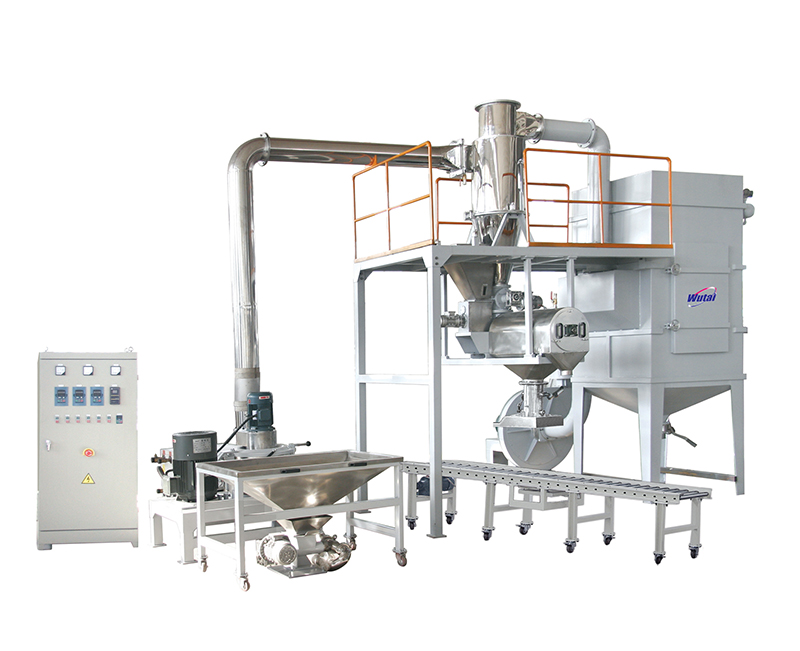

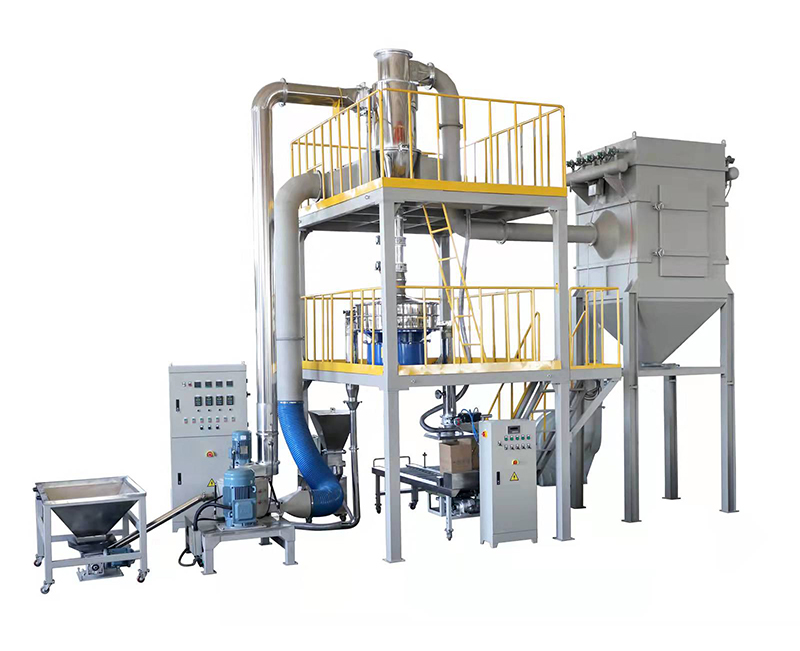

ACM series grinder is a key equipment in whole powder coating production line, designed with functions of high speed milling , air classifying , cyclone sifting, and the fine powder collection, it is widely applied   for the  production of pigment , calcium, carbonate , medicine and food etc .



Features:

*Homogeneous and stable particle distribution

*Particle size adjustable

*High output capacity

*Higher recollection rate ≥98%

*Easy to clean and maintenance

*Operation safety

*Mill humidity monitored(option)

*Cyclone double cooling

*Mill cover open/close by electricity/air(optional equipment )

*Casting air blower body,lower noise.(optional equipment)



Specification



model

ACM-07

ACM-10

ACM-20

ACM-25

ACM-30

ACM-40

ACM-50

Output(kg/h)

80-100

150-200

200-300

300-450

500-600

700-800

800-1000

Main motor(kw)

5.5

7.5

11

15

22

30

37

Main mill speed(rpm)

7500

7000

6000

6000

5000

4500

4000

Classifier motor(kw)

1.1

1.1

2.2

3.0

4.0

4.0

5.5

Classifier speed(rpm)

0-2980

0-2980

0-2980

0-2980

0-2980

0-2980

0-2980

Feeding motor(kw)

0.37

0.55

1.1

1.1

1.5

1.5

2.2

fan motor(kw)

5.5

7.5

11

18.5

22

37

45

Overall dimension(m)

4.3*1.2*2.7

6*1.3*3.2

8*1.4*3.8

8*1.5*3.8

8*2.2*3.9

8*1.7*4

8*1.8*4
